| Lieu d'origine: | La Chine |
|---|---|
| Nom de marque: | Trio-Vision |
| Numéro de modèle: | TVS-2000E |
| Quantité de commande min: | Négociable |
| Prix: | Negotiable |
| Détails d'emballage: | carton |
| Délai de livraison: | 4-8 semaines |
| Conditions de paiement: | T/T, L/C |
| Capacité d'approvisionnement: | 20unités par mois |
| Nom: | Vidangez l'équipement de vidéosurveillance | Caractéristique: | IMPERMÉABLE |
|---|---|---|---|
| gamme d'inspection: | 300-2000mm | Rotation de la caméra: | Rotation à 360 ° |
| Contrôle: | Manette | Enrouleur de câble: | Manuel |
| Surligner: | drain cctv equipment,pipeline inspection robot |
||
360 ° Rotate Drain CCTV Equipment / Waterproof Pipeline Inspection Robot
Drain CCTV Equipment Key Function
1. Light weight
The whole machine is light weight: light weight master control, light weight cable reel, and light weight crawler;
PC control: use laptop (tablet) as a host to control crawler;
2. Fast and Easy to Assembly
Efficient detection: quick assembly on site, time-saving and efficient;
Quick assembly: fast data transmission with no need to connect cable;
3. Good synchronization
Good synchronization: synchronization display of the before and after video screens;
HD highlight: high definition camera with highlight combination light source;
Drain CCTV Equipment Technical Parameter
| Controller |  |
1. Available in any notebook computer as the control system 2. Wireless control 3. Real-time display date and time, travel distance, crawling attitude information and set the display font information, font size,background color. 4. Front and rear sights display on the same interface at the same time. |
| Pan&Tilt Camera JT2000 | |
1,360 degree, no limited rotate 2,The lens heating can prevent fog 3,Camera light can be adjusted 4,Maximum Brightness upgrade 50%, More suitable for small diameter 5,Optional Laser, calibrate defect size |
| Cralwer TVS-800 | |
1. Working temperature: -10ºC~50ºC 2. Suitable pipe diameter: 50mm~2000mm 3. Drive: two DC motor 4. Elevator: electric elevator 5. Inclination: mesurement scope ±45 degree, pecision 0.1 degree 6. Speed: adjustable speed, max. 32m/min 7. Direction: forward, backward, left, right 8. Pressure indication: green light(1.2-1.5 bar, normal pressure), red light abnormal light. 9. Climbing: max. climb degree about 50° according to diffrerent pipe status 10. Rear sight camera: integrate camera and light, inspect crawler backwards and cable retreiving |

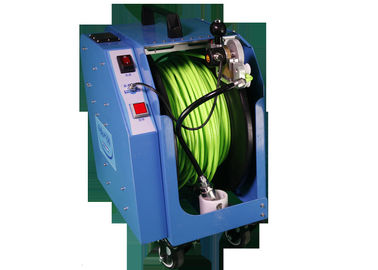

| Manual Cable Drum DLPM120 | |
1,Manual cable drum 2,standard length: 120m |

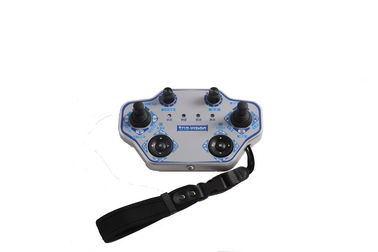

| Joystick | |
(1)high beam brightness adjustment (2)camera control, left/right/up/down (3)camera zoom in/out/focus near/far/center (4)power switch (5)elevator up/down/clutch/rear sight/camera light adjustment (6)crawler direction control, forward/backward/left/right (7)crawler speed control (8)USB (9)equipment operation status LED light, blue tooth not connected is blue light, purple light connected |

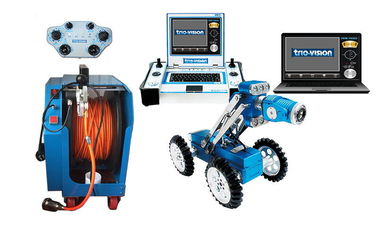

Drain CCTV Equipment Configuration
| Standard Configuration | Optional Parts |
| TVS800 crawler | JT60 axial camera |
| JT-2000 pan & tilt camera | JT360 fish-eye camera |
| Manual cable drum | Automatic cable drum |
| Windows Laptop | PA500 portable movable power |
| Joysitck |
